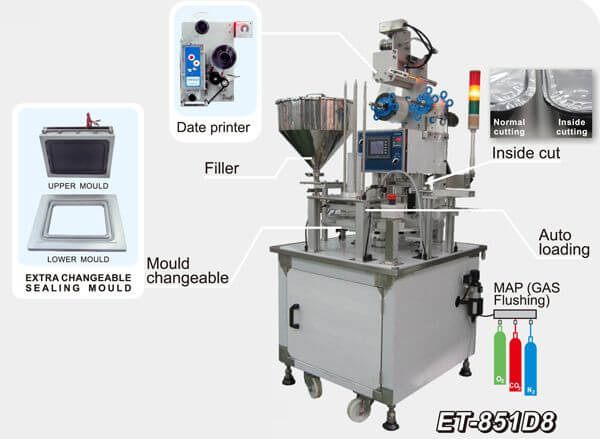

Auto Rotary Sealing Machine: ET-85

  • Auto Rotary Sealing Machine: ET-85


  1. PLC with Index Gear Conveyor, Inverter Speed Control, and Touch Screen Operation.
  2. Stainless Steel frame and Anodized Aluminum.
  3. Three models for Film Feeding: Sensor, Encoder, and Timer.
  4. Available for Colorful & Blank film.
  5. Sealing and Boarded Cutting(Profile cut).
  6. Functions additional as a continuous model.
  7. Interchangeable sealing tool(Sealing and base mold).
  8. Smaller body but supply large capacity.


Model ET-851D4 ET-851D6 ET-851D8
Capacity(psc/hr) 900 950 1000
Max.Cup Size(mm) 145x120x100 100x100x100 80x80x100
Machine Size(mm) WxDxL 700x700x1500 700x700x1500 700x700x1500


  1. Suitable for beverages, Pudding, Jelly, Fast-food, Snacks, Various prepared foods for the microwave, Seasoned frozen food, Pickled foods, Seafood, processed agricultural products, etc. Which load into the cup and tray.
  2. Sealable material: PP, PE, PS, PET, HDPE, EPS, PSP, Aluminum foil, Paper box, etc.
  3. For smaller working spaces but higher capacity.

Optional Function

  1. Auto Tray Drop.
  2. Gas Flushing(MAP): For ET-80 only.
  3. Inside cutting.
  4. Auto Filling: Liquid, Heavy liquid, or solid products.
  5. Pre-cut Lid application.
  6. Product Output Discharger.
  7. Lid Capping.
  8. Changeable Mould for the sealing tool.
  9. Date Printer/Coder(Hot ink manual, Times Roman 12 font, 5 rows x 9 alphanumeric lines)
  10. Weightier.
